Oil Water Separator 2
Introducing the Highest Quality Products made with Donghae Industrial's Technology.
Kinds of water oil separation
-

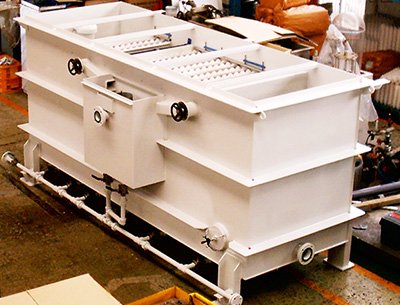

EPS Standard
Separate the oil content of oil mixed water from 990,000 PPM to under 5PPM -

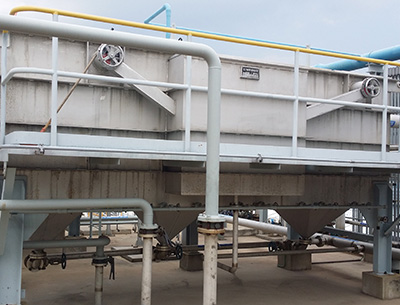

EPS-M
Separate the oil content of oil mixed water from 990,000 PPM to under 20PPM -

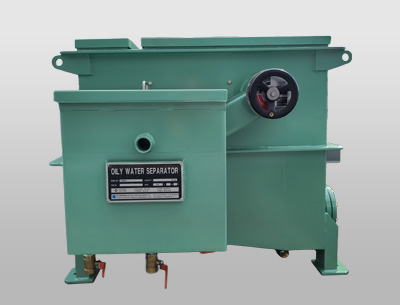

EPS - S
Separate the oil content of oil mixed water from 990,000 PPM to under 0.1% -

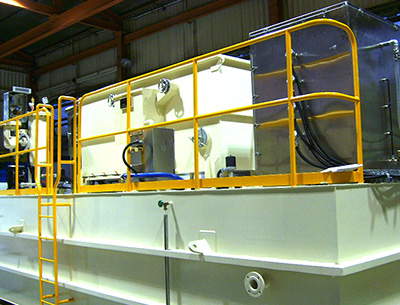

EPS - D
Separate the oil content of oil mixed water from 990,000 PPM to under 3PPM -

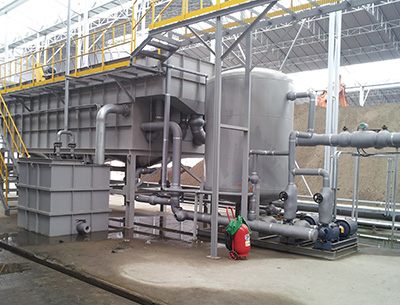

EPS - DAF
Separate the oil content of oil mixed water from 990,000 PPM to under 3PPM
Coverage
- 1) Applied to broad disposal of waste water
- - The temperature of mixed water with oil is about at 4℃ ~ 100℃
- - PH 2-12 of oil mixed water
- 2) Applied to waste water at no more than N-H 990,000ppm
-

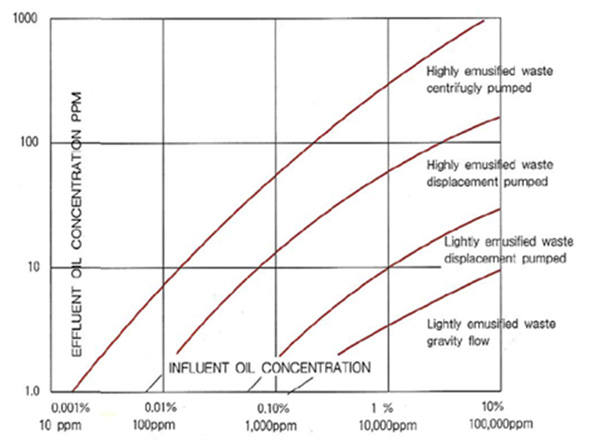

PUMP Selection- ▶ In centrifugal rotation PUMP, since OIL is cut finely by the impeller, the flotation time is delayed and the efficiency is lowered.
- ▶ Among the pumps for volume application, AIR DIAPHRAGM PUMP is recommended.
-

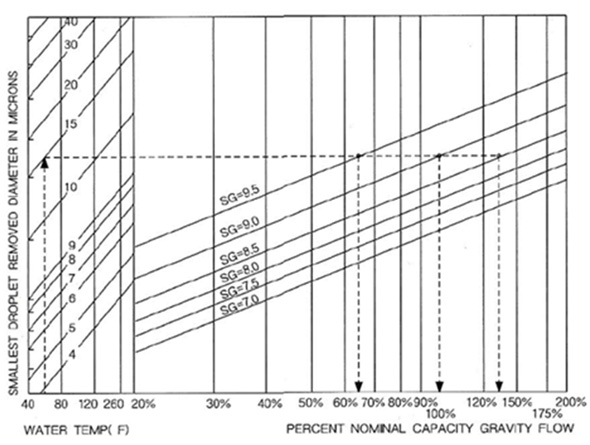

Flow rate selection of EPS oil-water separator- ▶ The flow rate is 100% for mixed water containing oil at a temperature of 68°F and specific gravity of 0.9.
- ▶ Mixed water with a temperature of 68°F and specific gravity of 0.85 can flow up to a flow rate of 135%.
- ▶ Mixed water containing oil with a temperature of 68°F and specific gravity of 0.95 should be reduced to 75% of the flow rate.
